A professional manufacturer and packaging solution provider in the post-press packaging industry, with customers covering more than 80 countries and regions around the world.
1 Years
| Ask Lasest Price | |
| Brand Name : | FINTEECH |
| Model Number : | FS-1000VB |
| Certification : | CE |
| Delivery Time : | 20-30 days |
| Payment Terms : | TT/LC |
| Supply Ability : | 10 sets per day |

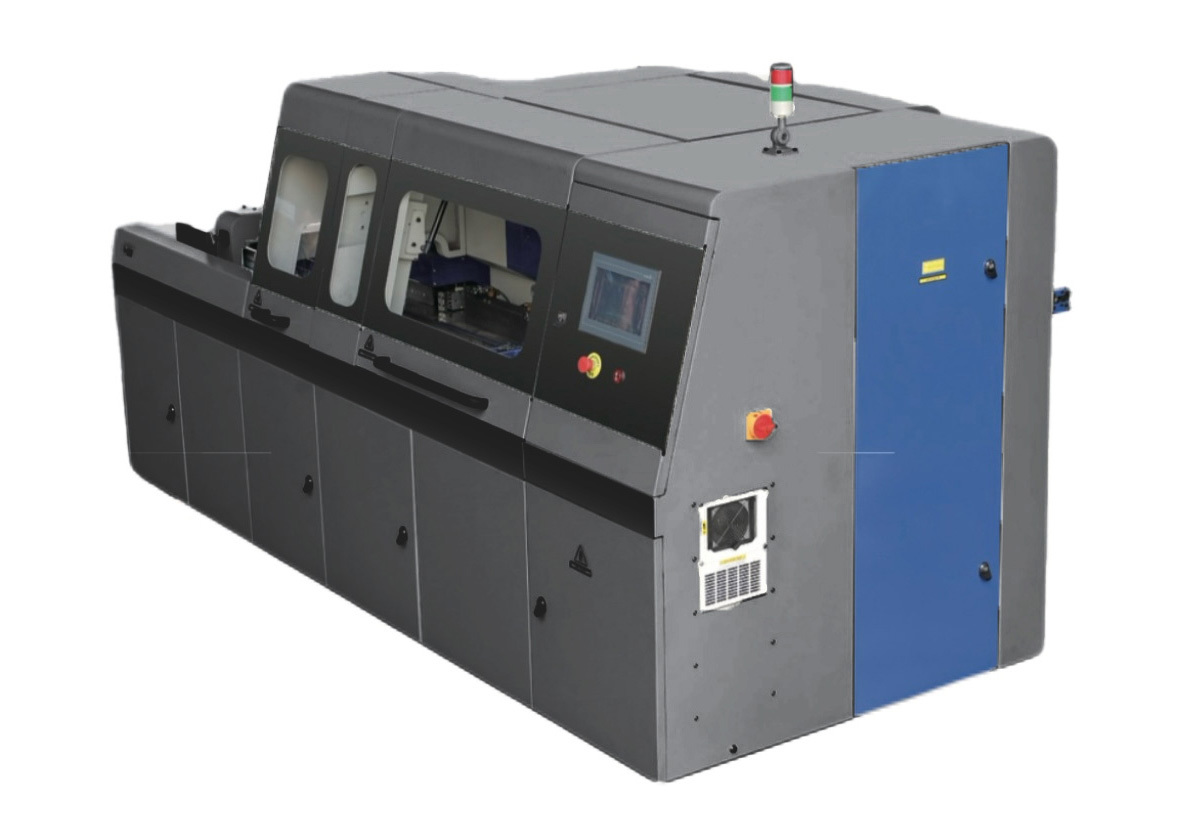

This fully automatic Three Knife Trimmer is the latest intelligent fully automatic trimmer model designed and developed by our company, which is particularly suitable for use in the digital industry. This machine can be connected to various types of glue binding machines, and the transmission action of the machine is completed by a servo system. It also realizes intelligent adjustment and plate replacement, greatly reducing the technical requirements for operators during use. The machine has high precision, stability, and reliability Flexible plate changing, intelligent adjustment, and convenience can be achieved when cutting small batches of books and periodicals.
| Model | FS-1000VB |
|---|---|
| Max. Cutting Size | 340*300mm |
| Min. Cutting Size | 145*100mm |
| Max. Cutting Height | 60mm |
| Min. Cutting Book Height | 10mm |
| Min. Single Cutting Height | 5mm |
| Cutting Speed | 1300cut/hour |
| Power | 7KW |
| The Pressure | 6Pu |
| Overall Dimension | L3020mm *W2196mm *H1710mm |
| Machine Weight | 2400KG |
Set the required length, width, and height dimensions for cutting books and magazines on the touch screen, and the machine will automatically adjust the size. And the data can be saved with a name annotation.
The machine shutdown protection and prompt function when the cutting size is inconsistent with the mosaic. The function of the presser foot can be adjusted on the touch screen.
The book delivery pusher adopts a brand new design, which can adjust the thickness of books without manual intervention.

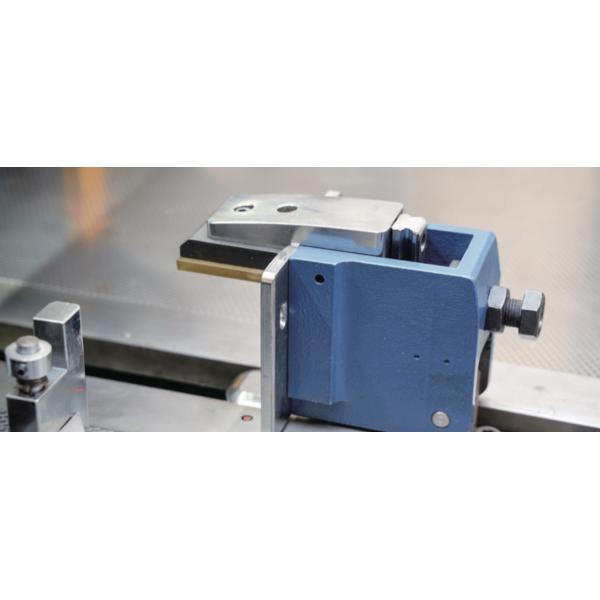

The automatic gear gauge can set the size of the required trimming edge on the touch screen, and the machine gear gauge will automatically adjust without manual intervention. And equipped with automatic alignment function.
The horizontal feeding device can be automatically adjusted according to the touch screen settings, and the adjustment of the book delivery channel is convenient and fast.
|
|
